LED IP65 Batten Housing

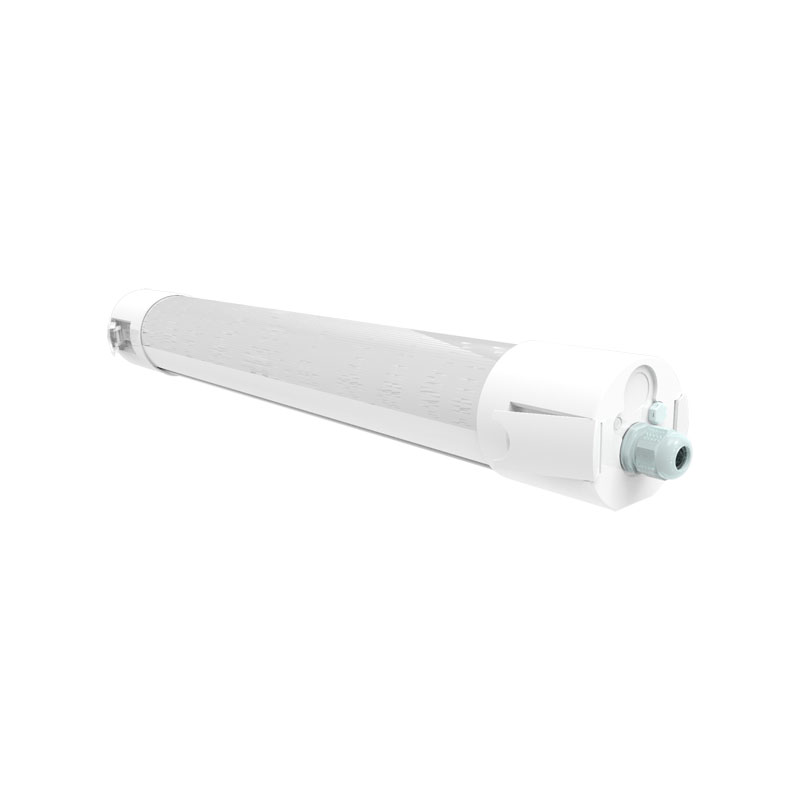

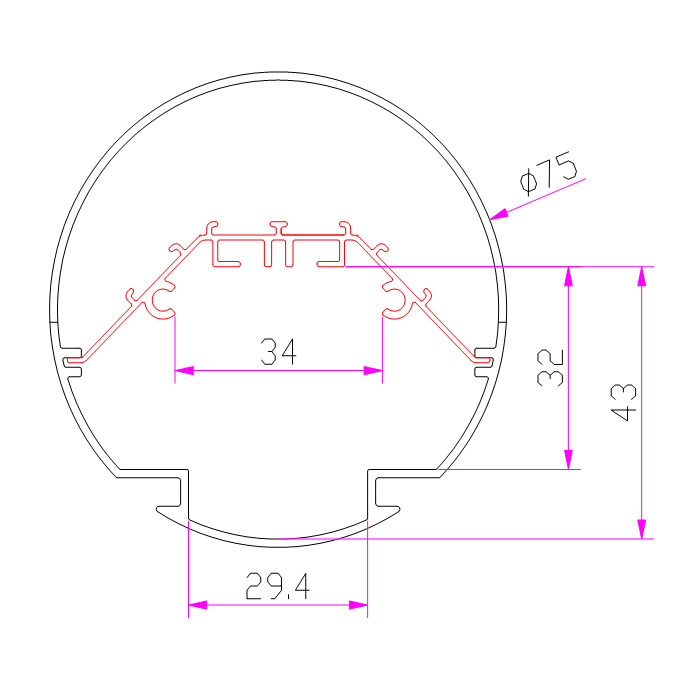

This LED IP65 batten housing of JE is a relatively rare structure. This LED IP65 batten housing is closer to the conventional LED tube housing in appearance, but it is much larger than the conventional LED tube housing, which means that it can achieve a higher wattage and can better meet the needs of some special occasions. Its exterior is a PC tube, and the aluminum profile inside is a special arc design, which can hold three PCBs, which can greatly increase the luminous surface of the entire lamp tube. The advantage of this structure is that the cost of the entire LED IP65 batten lamp is relatively low, but the light effect is very good. Our company uses 100% new raw materials to ensure that the plastic diffuser has high light transmittance and stable diffusion effect. This further ensures the cost-effectiveness of this LED IP65 batten housing. The following is an introduction to the entire housing, please kindly check it out.

Product Parameter (Specification)

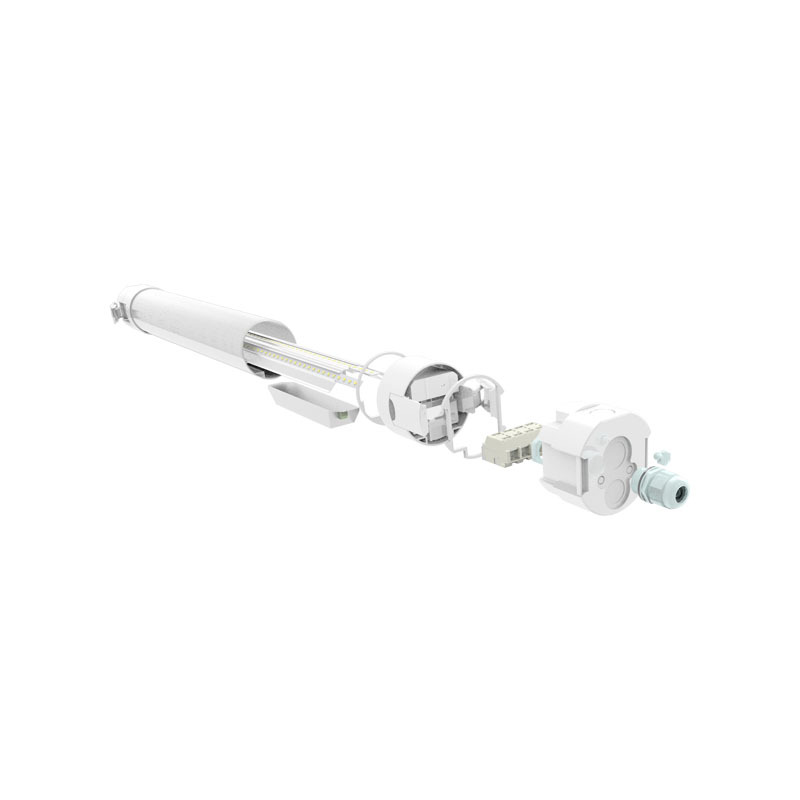

Item	Part picture	Part name	Part QTY
1		PC tube	1
2		Aluminum profile	1
3		PCB	3
4		Gasket1	2
5		End cap	2
6		Gasket2	2
7		End cap	2
8		M4*15 screw	4
9		Terminal	1
10		PG13.5 waterproof nut	1
11		Waterproof vent valve	1

Product Feature And Application

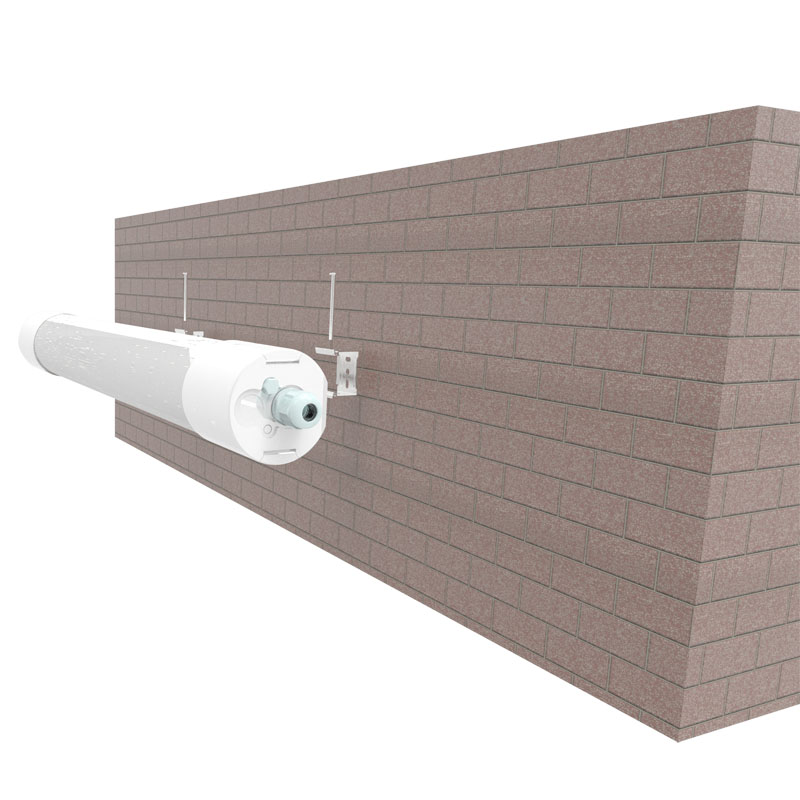

LED IP65 batten housing can be made into many kinds of batten lights, this lights are generally used in power plants, steel, petrochemicals, ships, stadiums, parking lots, basements, etc.

Product Details

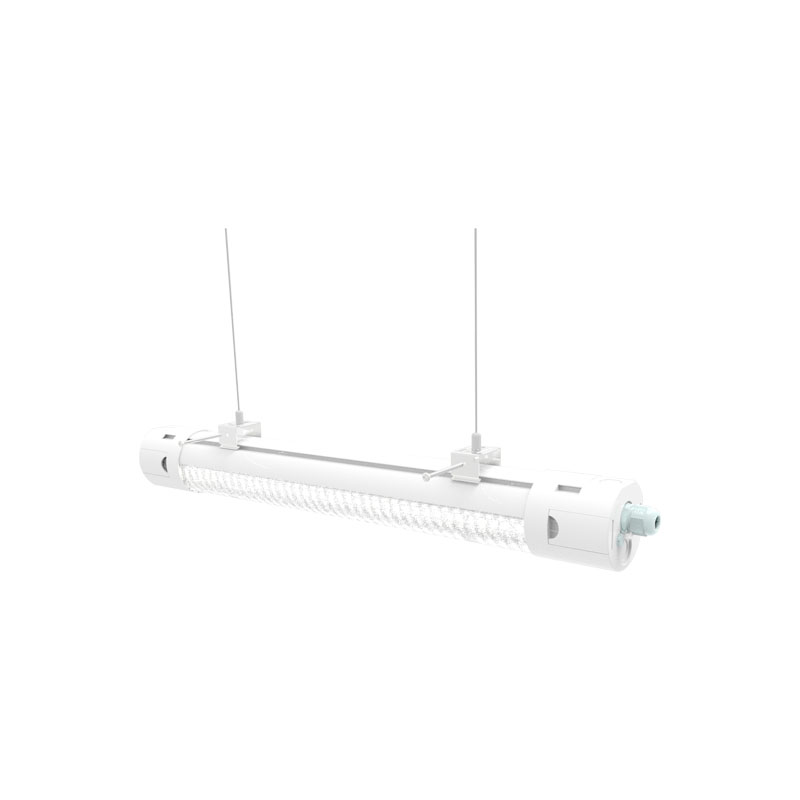

More details of this LED IP65 batten housing:

Product Qualification

Dongguan Jinen Lighting Technology Co., Ltd. is located in Dongguan City, Guangdong Province, the "world factory". As a professional OEM&ODM LED aluminum profile and LED plastic profile extrusion manufacturer, we have more than 500 kinds of public mold products and more than 2,000 customized private mold products. It has become a leading enterprise in the industry and is deeply trusted and supported by customers. In order to improve production efficiency, we have carried out one-out-two technical upgrades for products with very large orders, which greatly improves production efficiency, reduces costs for customers, and achieves a win-win situation.

Deliver,Shipping And Serving

FAQ

Q1. Where is your factory located?

Re: We are located in “World manufacturer” Dongguan city, Guangdong province, China.

Q2. How many days is the tool production of LED aluminum and plastic profile?

Re: Usually 7-15 days.

Q3. Can Your products be installed under the cold weather?

Re: Yes, Weather resistance is -40 degree to 120 degree.

Q4. What are your normal processes for regular order?

Re: We are very suggest customers give the forecast for the next three month. This are our normal processes for regular order:

Receiving PO--Sales confirm PI with customer--Receiving 30% payment in advance--Sales assistant proceed production and confirms the exact LT--QC confirms the goods are ready for shipping--Receiving the balance payment--Arranging shipment--after sales service.

Q5. What kinds of LED lighting can use your profiles?

Re: LED cabinet lighting, LED strip lights, T5/T6/T8/T10/T12 tubes, tri-proof tubes and special-shape tubes, etc.
