LED T8 Housing with Rotated End Cap

JE Company is a factory specializing in the production and manufacturing of aluminum profiles and plastic profiles. Our product categories are mainly divided into two major types. One is aluminum profiles for light bars, such as surface-mounted aluminum profiles and embedded aluminum profiles. Special aluminum profiles for gypsum board, etc. The second is used to produce lamp shells of various sizes. Such as T5 lamp tube, T8 lamp tube, T10 lamp tube, T12 lamp tube, etc. If you need more information and support, please feel free to contact us.

Send Inquiry

Product Description

This is a LED T8 housing with rotated end cap. The radiator is extruded from 6063 aluminum. The heat dissipation effect is very good. The surface is anodized with no burrs or scratches. The thickness is 0.8mm. It will not be damaged during transportation. Will deform. The PC diffuser uses raw materials from internationally renowned brands to ensure quality from the source. Whether it is made into milky white or transparent color, there are no impurities and black spots on the surface. This lamp can be equipped with three types of plugs, one is the conventional G13 plug, the other is the IP65 waterproof plug, and the third is LED T8 housing with rotated end cap, which can meet the needs of customers in various situations.

Product Parameter (Specification)

Item NO	JE-29
Length	600mm, 900mm, 1200mm, 1500mm, 2400mm or customized
Tube	T8
Diameter	26mm
PCB board size	19*1mm
Driver	Internal
Max height of driver	12mm
Aluminum base material	6063 aluminum alloy
Aluminum base color	Silver
Plastic diffuser material	Polycarbonate
Plastic diffuser color	Frosted, Clear(transparent), stripe

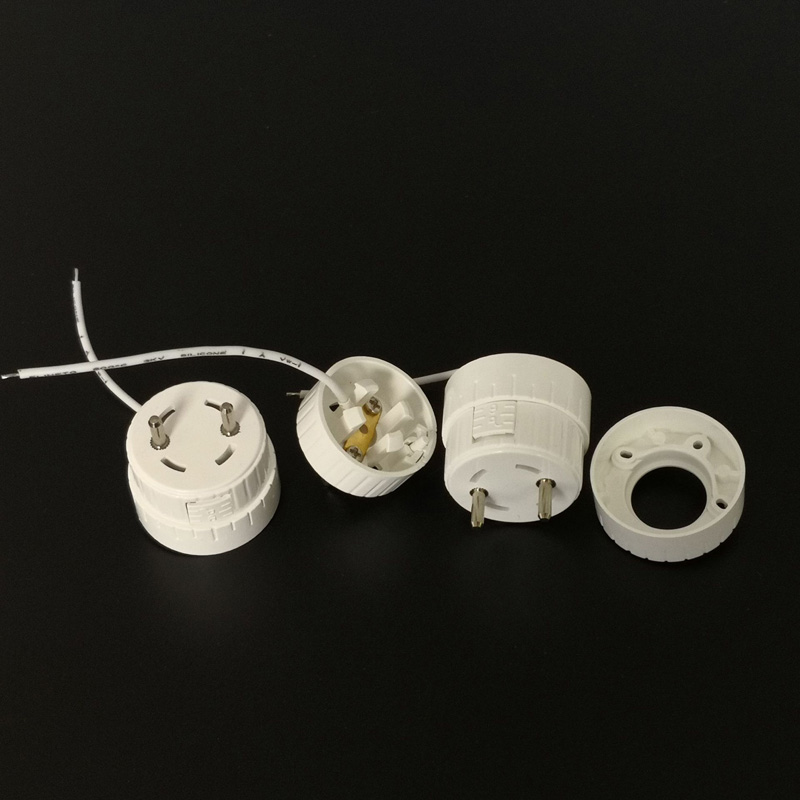

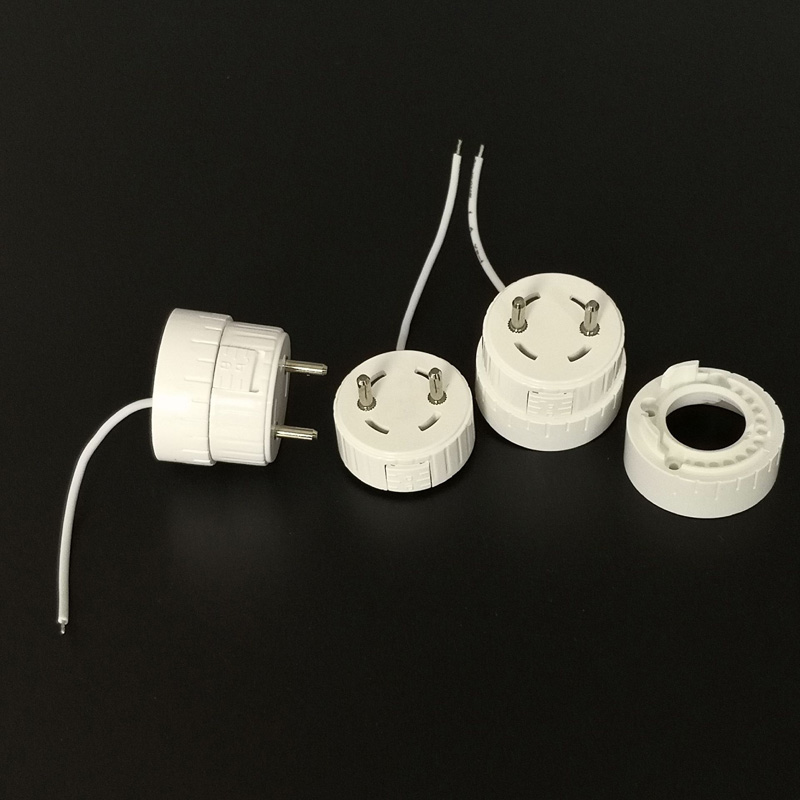

End caps	LED T8 housing with rotated end cap
Waterproof	IP20

Product Feature And Application

This JE-29 LED T8 housing with rotated end cap is mainly used for indoor and outdoor T8 tube lighting projects that need lamp decoration, such as store, auditorium, class room, supper market and other public place.

Product Details

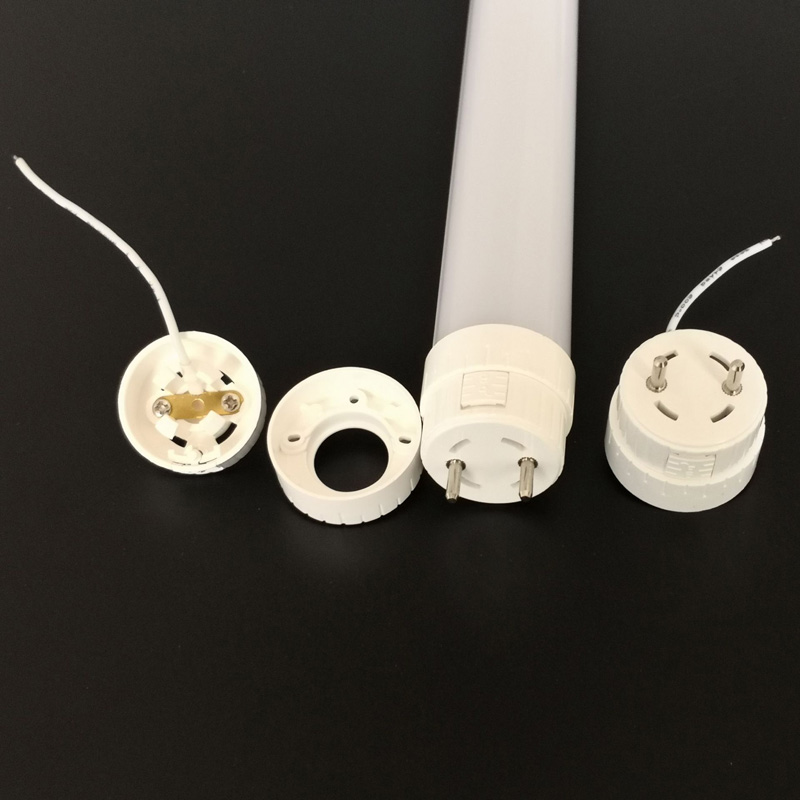

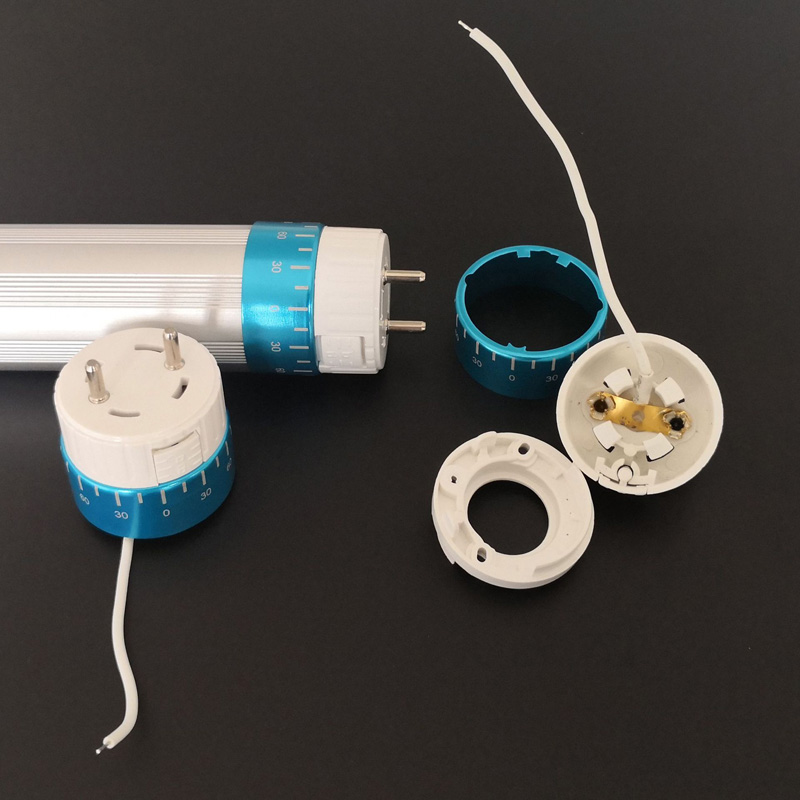

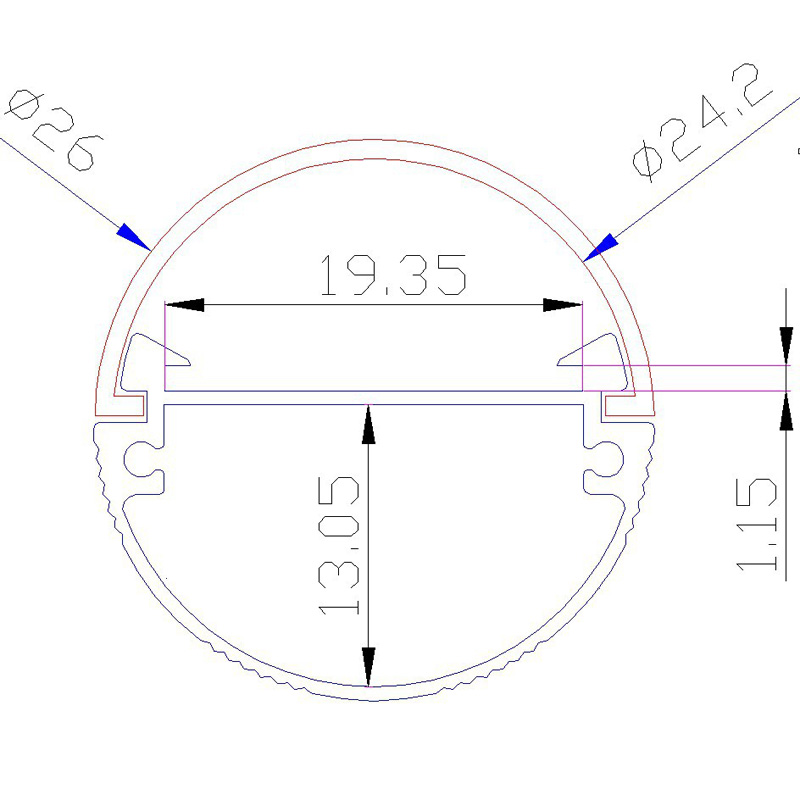

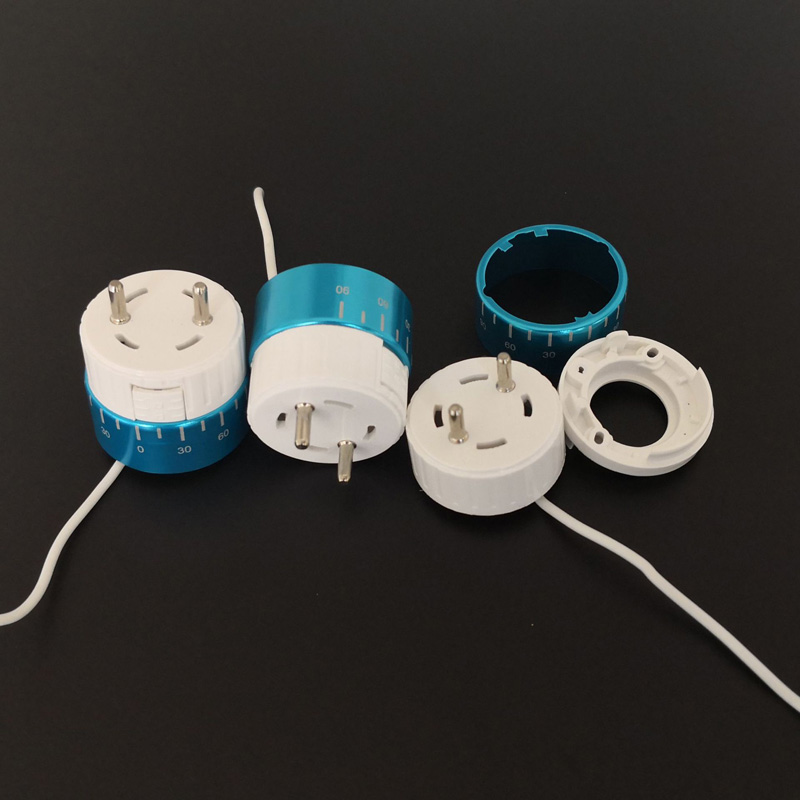

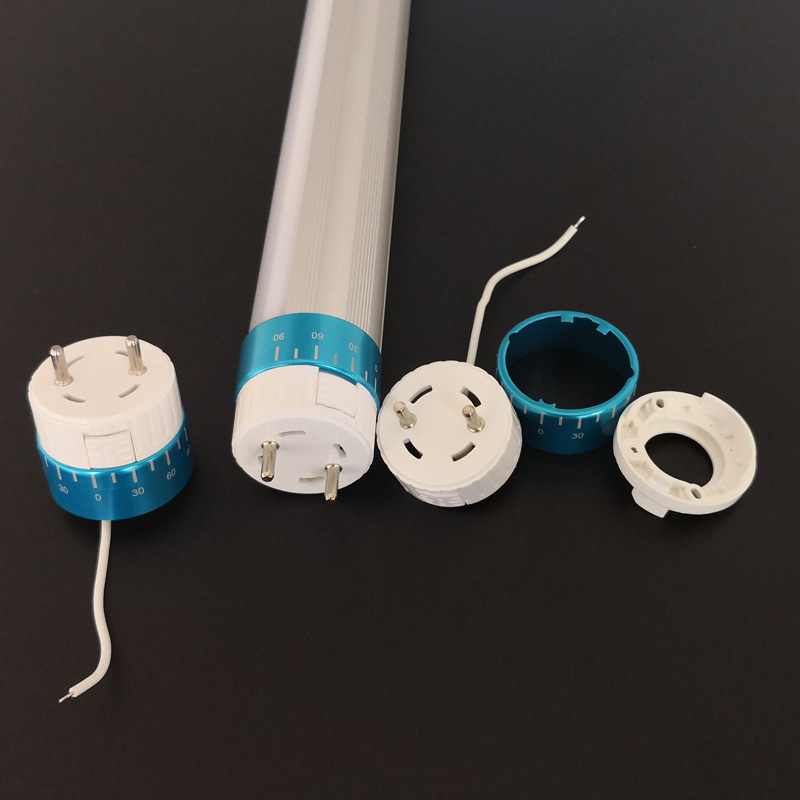

More details of this LED T8 housing with rotated end cap with 19mm PCB

Product Qualification

As a LED Aluminum Profile and LED plastic profile professional manufacturer, here are our main machines:
1.20 plastic extrusion machines
2.5 aluminum extrusion machines,
3.A professional integrating sphere to test whether the lamps made by our lamp kit can meet the various indicators required by customers,
4.A professional standard light source testing equipment for testing the light transmittance and other properties of plastic lampshades.
JE always focus on product qualification from aluminum and plastic raw material to extrusion production line, from samples quality control to mass production control, from strong perfect package to whole-heart service.

Deliver,Shipping And Serving

FAQ

Q1. How many aluminum extrusion production lines in your factory?

Re: We have 5 of aluminum extrusion production lines.

Q2. What is the process of OEM order?

Re: Receiving drawing--Project manage confirm all production details with customer--Receiving tool production PO--Sales assistant proceed tool production--QC confirm samples are ready for shipping--Project manage confirm products with customer about every details-- start the regular order.

Q3. How many machines are there in your factory?

Re: 20 of plastic extrusion production lines,

5 of aluminum extrusion production lines,

3 of injection molding machines,

5 of precision mold manufacturing equipment s,

2 of test equipment(integrating sphere and Color Assessment Cabinet).

Q4. Can you offer waterproof profiles?

Re: Yes, tri-proof housing with IP65 grade are our regular items.

Q5. How long is your lead time?

Re: For our regular items the lead time is about 3-5 days. For customized items, the lead time is about 25-35 days including tools making time.
