T8 LED Housing

JE is a professional manufacturer of T8 LED housing in China. T8 LED housing has always been our main product, and it is also the most shipped lamp housing. The housing produced are mainly divided into two types according to the material, one is semi-aluminum and semi-plastic lamp housing, and the other is full plastic lamp housing. The cost of the half-aluminum and half-plastic tube will be high, but because the bottom aluminum material is thick, the heat dissipation is better than that of the all-plastic tube, so it can be used as a lamp with a relatively high wattage. The cost of the all-plastic tube is lower and it can be made into IP65 waterproof series lamps, so it is also very popular with customers.

Send Inquiry

Product Description

1. Products Introduction

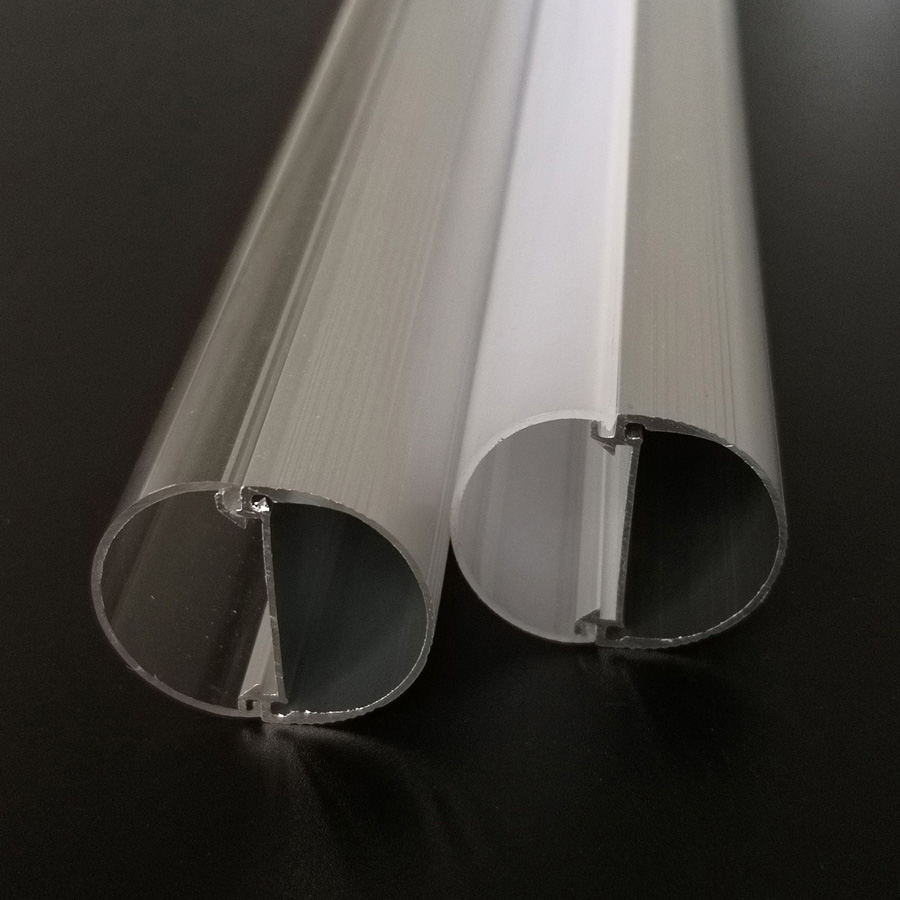

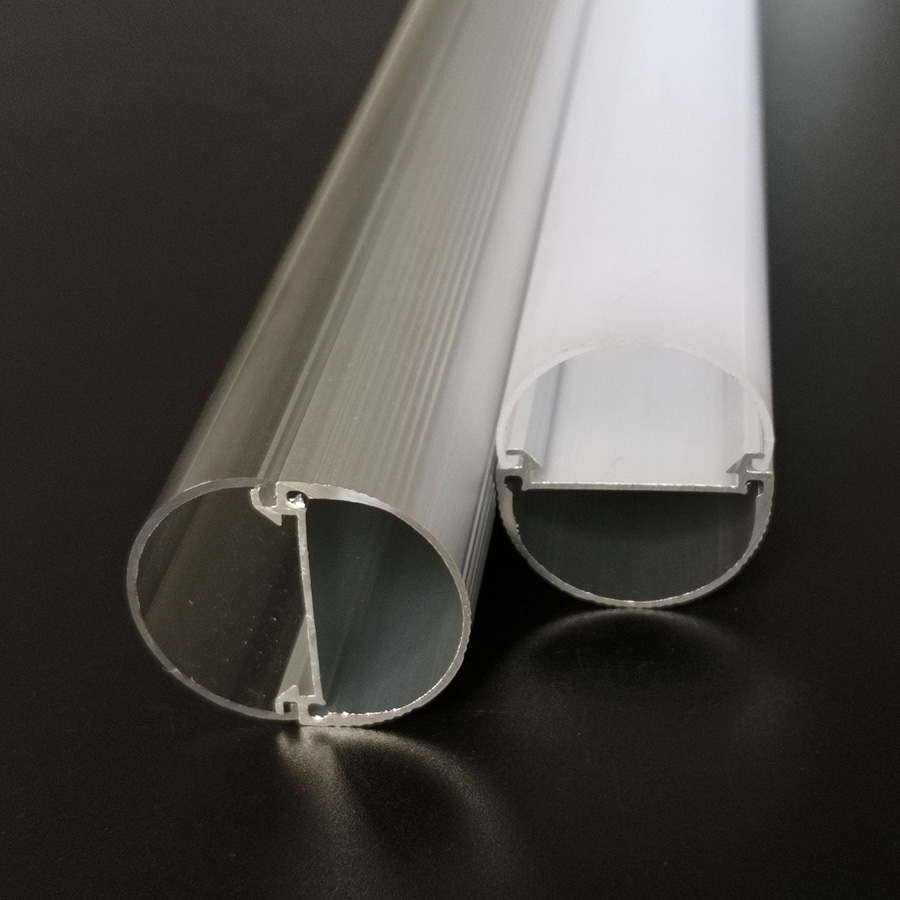

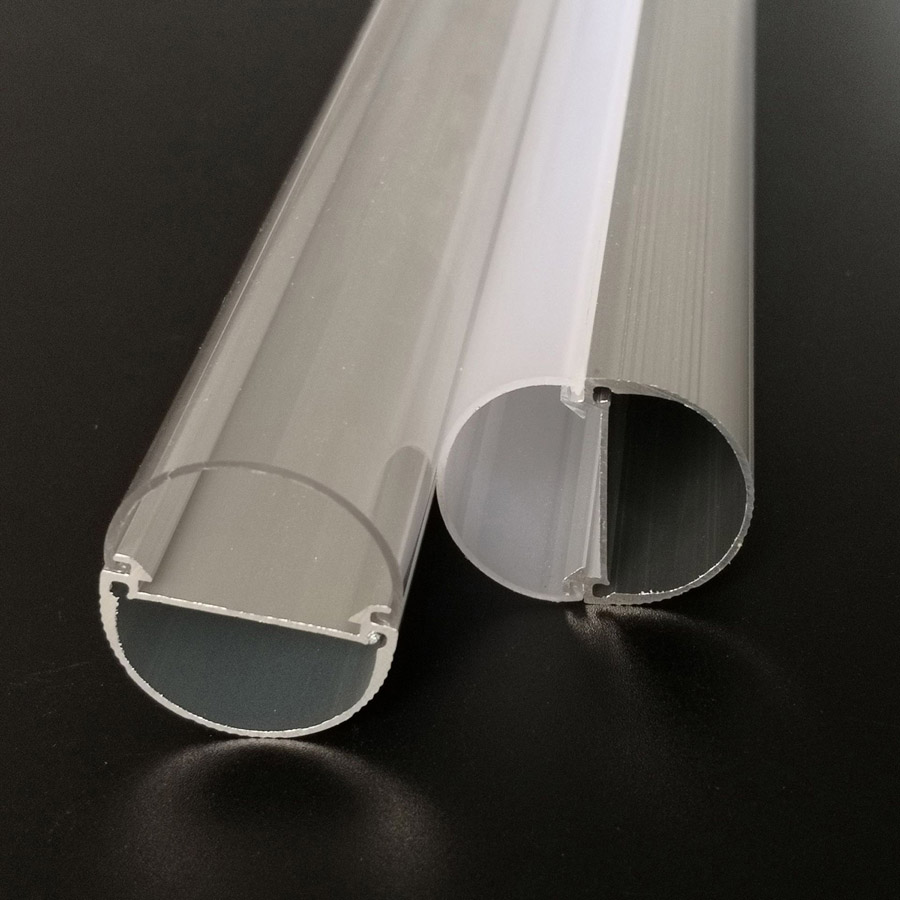

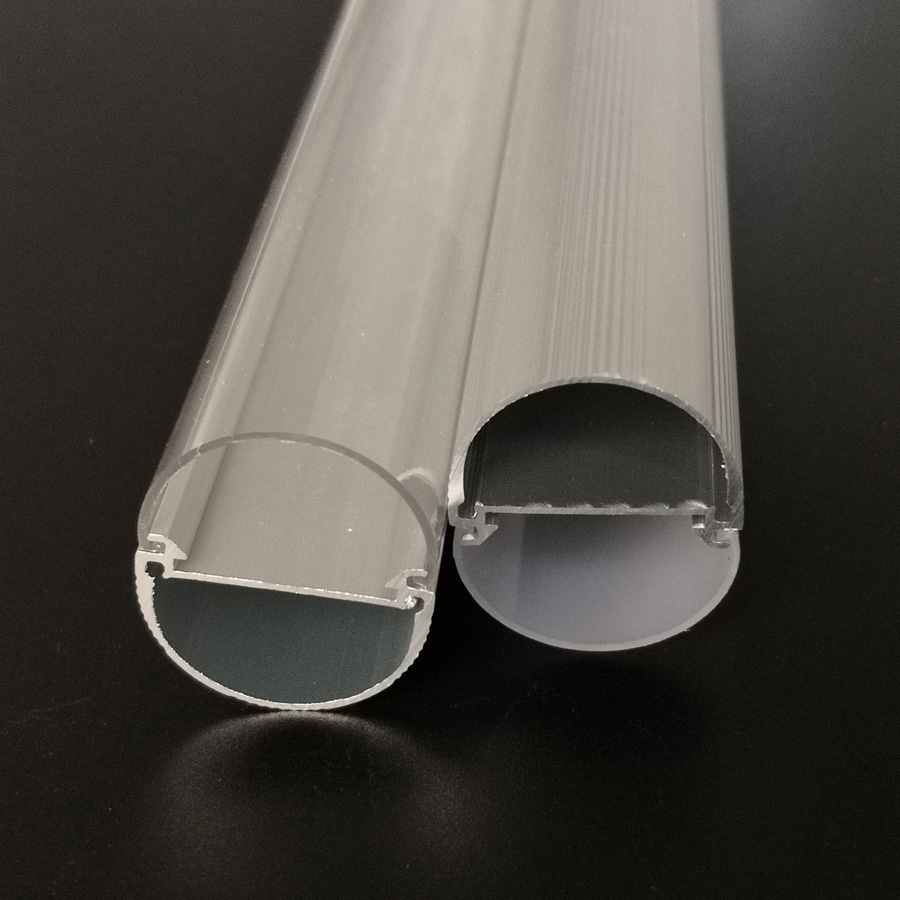

The T8 LED housing produced by JE factory can provide two series of waterproof and non-waterproof. This T8 LED housing is non-waterproof type and is made of half aluminum and half plastic, and the plug is installed by locking screws. The aluminum profile at the bottom is made of high-quality 6063 aluminum raw materials, and after extrusion production, anodized for surface treatment. Not only beautiful, but also conducive to heat dissipation. The PC diffuser in the upper part can be produced in various colors according to customers' requirements, such as transparent color, milky white and so on.

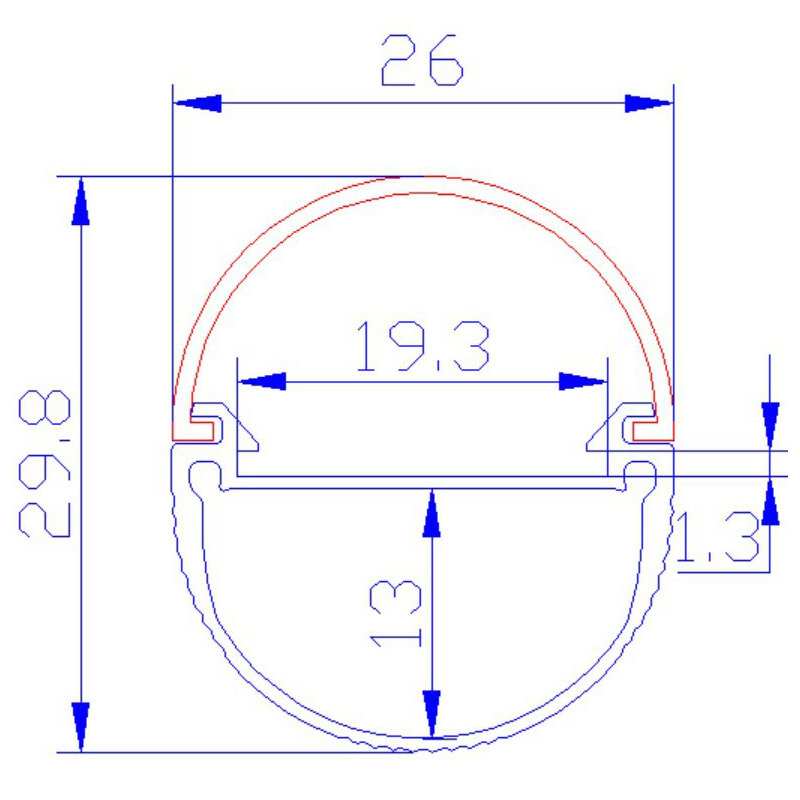

2.Product Parameter (Specification)

Length	600mm, 900mm, 1200mm, 1500mm, 2400mm or customized
Tube	T8
Diameter	26mm
PCB board size	19*1.2mm
Driver	Internal
Max height of driver	12mm
Aluminum base material	6063 aluminum alloy
Aluminum base color	Silver
Plastic diffuser material	Polycarbonate
Plastic diffuser color	Frosted, Clear(transparent), stripe
End caps	Plastic
Waterproof	IP20

3.Product Feature And Application

This T8 LED housing is mainly used for School lighting, factory lighting, convenience store lighting, home lighting, shopping mall lighting, office lighting and more.

4. Product Details

More details of this T8 LED housing:

5. Product Qualification

As a professional manufacturer of LED aluminum profiles and LED plastic profiles, the following are our main machines:
1.20 Plastic extruder
2.5 aluminum extrusion press,
3. Professional integrating spheres test whether the lamps made by our lighting kit can meet the various indicators required by customers,
4. Professional standard light source testing equipment for testing the transmittance and other properties of plastic lampshades.
From aluminum-plastic raw material to extrusion production line, from sample quality control to mass production control, from powerful perfect packaging to whole-hearted service, JE has always focused on product certification.

6. Deliver,Shipping And Serving

7.FAQ

Q1. What are your normal processes for regular order?
Re: We are very suggest customers give the forecast for the next three month. This are our normal processes for regular order:
Receiving PO--Sales confirm PI with customer--Receiving 30% payment in advance--Sales assistant proceed production and confirms the exact LT--QC confirms the goods are ready for shipping--Receiving the balance payment--Arranging shipment--after sales service.

Q2. What is process of OEM order?
Re: Receiving drawing--Project manage confirm all production details with customer--Receiving tool production PO--Sales assistant proceed tool production--QC confirm samples are ready for shipping--Project manage confirm products with customer about every details-- start the regular order.

Q3. How do you ensure quality?
Re: At first, we use new raw material all with environment protection certifications, please be sure we don’t use any re-product raw material.
Second, we have a professional Quality Control department, both samples and finished products must be confirmed by QC before shipment.

Q4. How do you ensure leading time?
Re: We have a professional Product Material Control(PMC) department, all orders are arranged by system.

Q5. Can Your products be installed under the cold weather?
Re: Yes, Weather resistance is -40 degree to 120 degree.
